Browse the catalog as a two-level range: each primary family contains secondary configurations for battery, motor and output. Every published attribute below comes from the supplied Kingplay product data.
12″
Primary category · 01

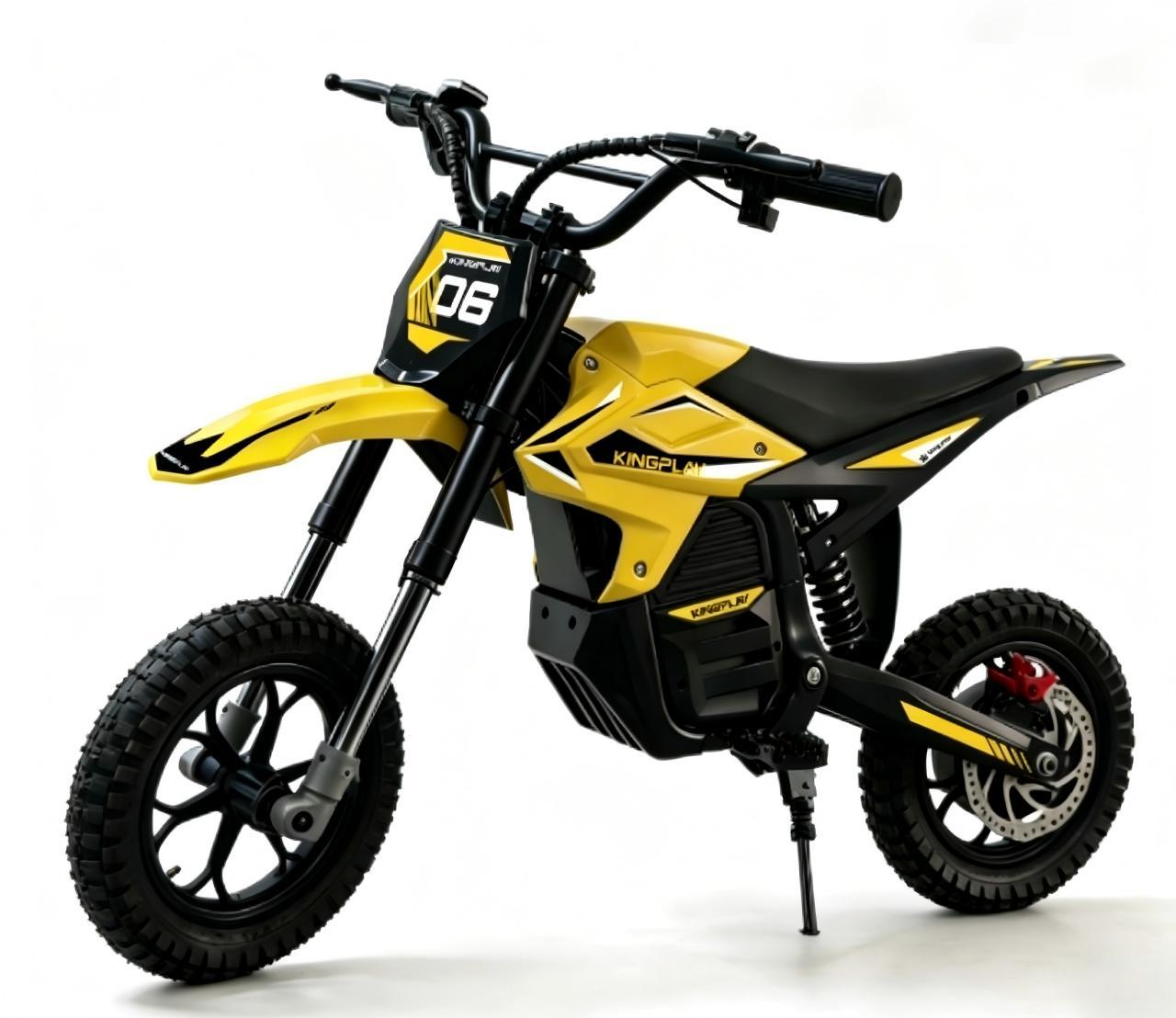

S5 C-win
The compact first step for younger riders building throttle and balance confidence.
Secondary categories · 4 configurations
Full brochure dataOpen the product detail page to view every specification for each secondary configuration.
14″
Primary category · 02

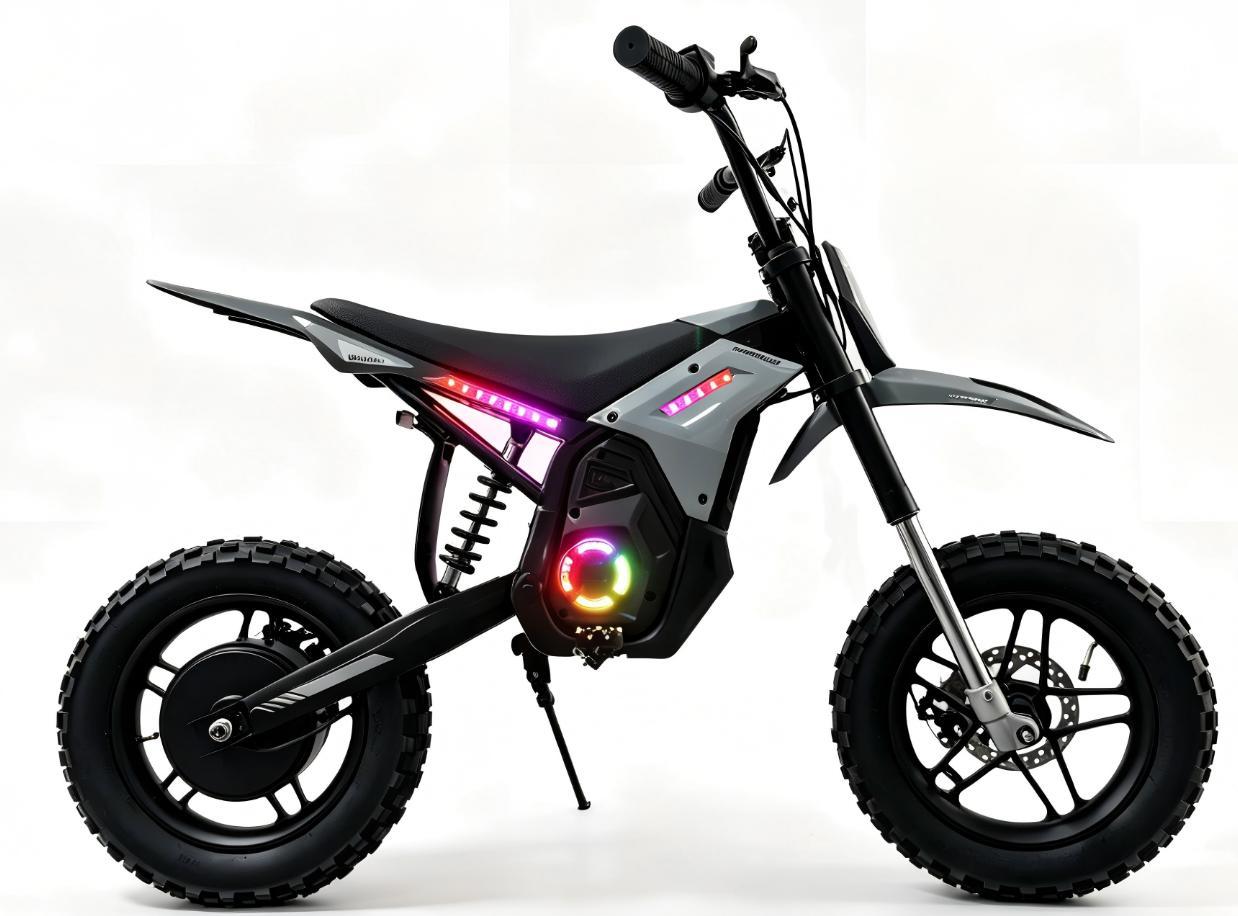

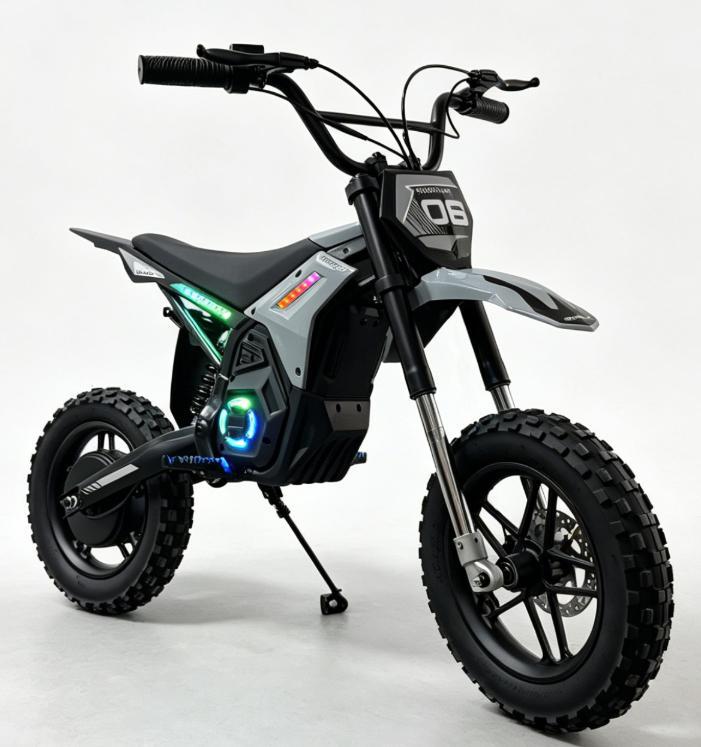

S3 Pro X-play
A sharper, night-inspired profile for riders ready for a more expressive machine.
Secondary categories · 3 configurations
Full brochure dataOpen the product detail page to view every specification for each secondary configuration.
14″
Primary category · 03

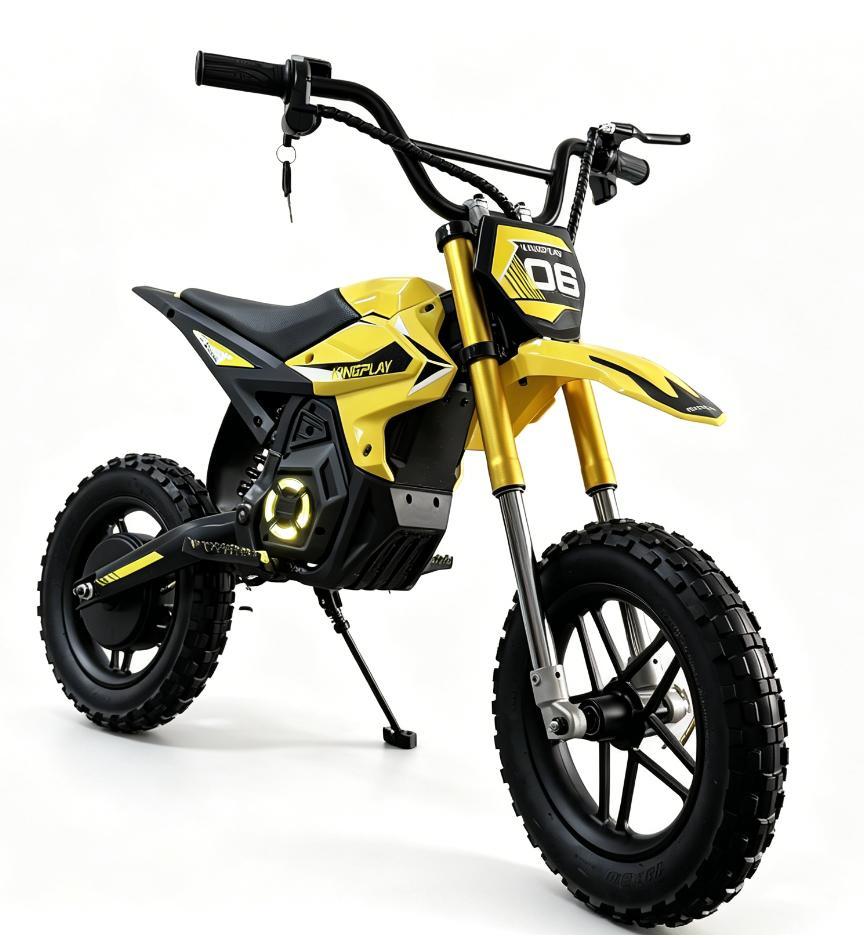

S5 Pro C-win
The familiar S5 silhouette, sized up for growing riders and longer weekends outside.
Secondary categories · 3 configurations
Full brochure dataOpen the product detail page to view every specification for each secondary configuration.
14–16″
Primary category · 04

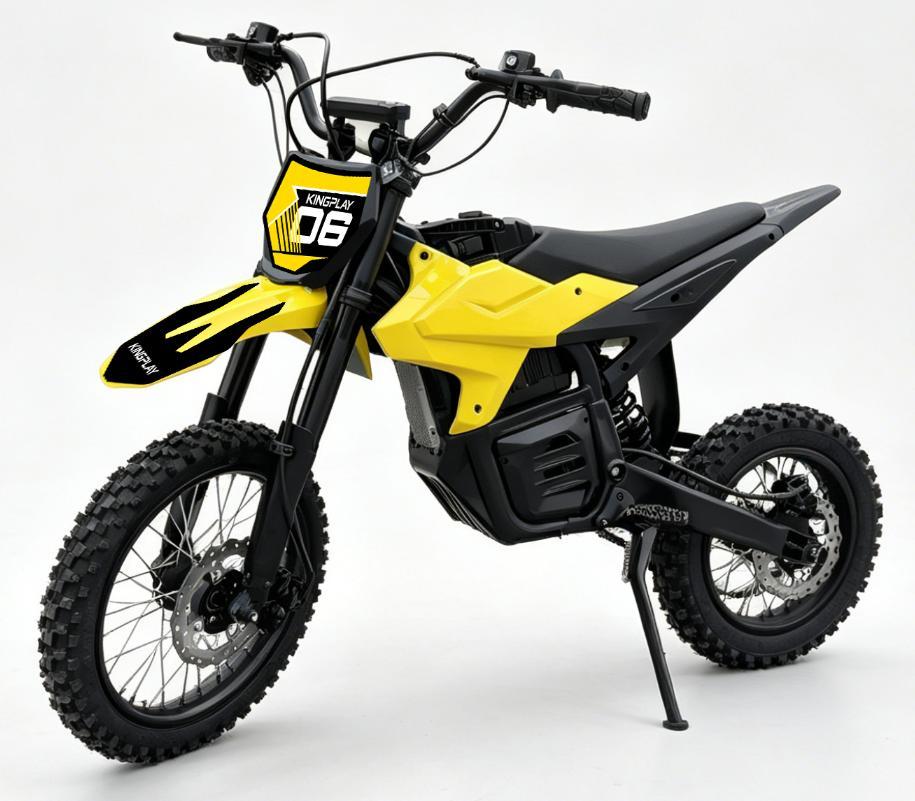

K8 Plus Kingplay
The range-top platform for taller young riders progressing toward a full dirt-bike stance.
Secondary category · 1 configuration
Full brochure dataOpen the product detail page to view every specification for each secondary configuration.
Fit comes before speed.
A young rider should be able to control the bike at a standstill before adding power. Use wheel size as the first filter, then confirm seat height, rider weight and speed modes against the final product datasheet.
12″First control
14″Growing confidence
14–16″Trail progression
Fit guidance is illustrative. Confirm the final rider-age, inseam and weight limits before publishing.
Designed like a machine. Explained like a parent.
The final product page should make control systems, braking, suspension and battery protection easy to verify—without burying the family in engineering jargon.
Parent-first controlsDocument speed modes and startup behavior clearly.
Predictable powerShow exactly how acceleration is delivered and limited.
Real-world fitPair wheel size with verified seat and rider measurements.
Compare all 11 configurations.
Primary family and secondary configuration are separated here so buyers can compare the verified battery, motor, range, speed and load attributes at a glance. Commercial terms remain available on request.
Primary family
Secondary config
Wheel setup
Battery
Motor
Range
Speed
Max load
Action
S5 C-win
S5 E
12″ inflatable
36V 4.0Ah lithium
36V brushless 350W
10 km
15 / 18 / 25 km/h
65 kg
S5 C-win
S5 B
12″ inflatable
36V 4.0Ah lithium
36V brushless 200W
10 km
15 / 18 / 25 km/h
65 kg
S5 C-win
S5 M
12″ inflatable
36V 3.0Ah lithium
36V brushless 200W
10 km
15 / 18 / 25 km/h
65 kg
S5 C-win
S5 I
12″ inflatable
24V 4.0Ah lead-acid
24V brushless 200W
10 km
8 / 15 / 20 km/h
65 kg
S3 Pro X-play
48V E
14″ inflatable
48V 8Ah lithium
Brushless 500W
25 km
Up to 35 km/h
85 kg
S3 Pro X-play
36V E
14″ inflatable
36V 5.2Ah lithium
Brushless 350W
10 km
15 / 18 / 25 km/h
70 kg
S3 Pro X-play
24V I
14″ inflatable
24V 4.0Ah lead-acid
Brushless 200W
10 km
8 / 15 / 20 km/h
65 kg
S5 Pro C-win
48V E
14″ inflatable
48V 8Ah lithium
Brushless 500W
25 km
Up to 35 km/h
85 kg
S5 Pro C-win
36V E
14″ inflatable
36V 5.2Ah lithium
Brushless 350W
10 km
15 / 18 / 25 km/h
70 kg
S5 Pro C-win
24V I
14″ inflatable
24V 4.0Ah lead-acid
Brushless 200W
10 km
8 / 15 / 20 km/h
65 kg
K8 Plus Kingplay
K8 Plus
14″ front / 12″ rear aluminum
48V 13.0Ah lithium
48V 1300W mid-drive
37–41 km
Up to 50 km/h
100 kg
All technical values shown here are from the supplied quotation/product data. Age guidance, commercial terms and launch claims still require final business confirmation where noted.
Bring Kingplay to your market.
Retailers, distributors and OEM partners can use one direct enquiry path for product range, packaging, minimum order and private-label discussions.
